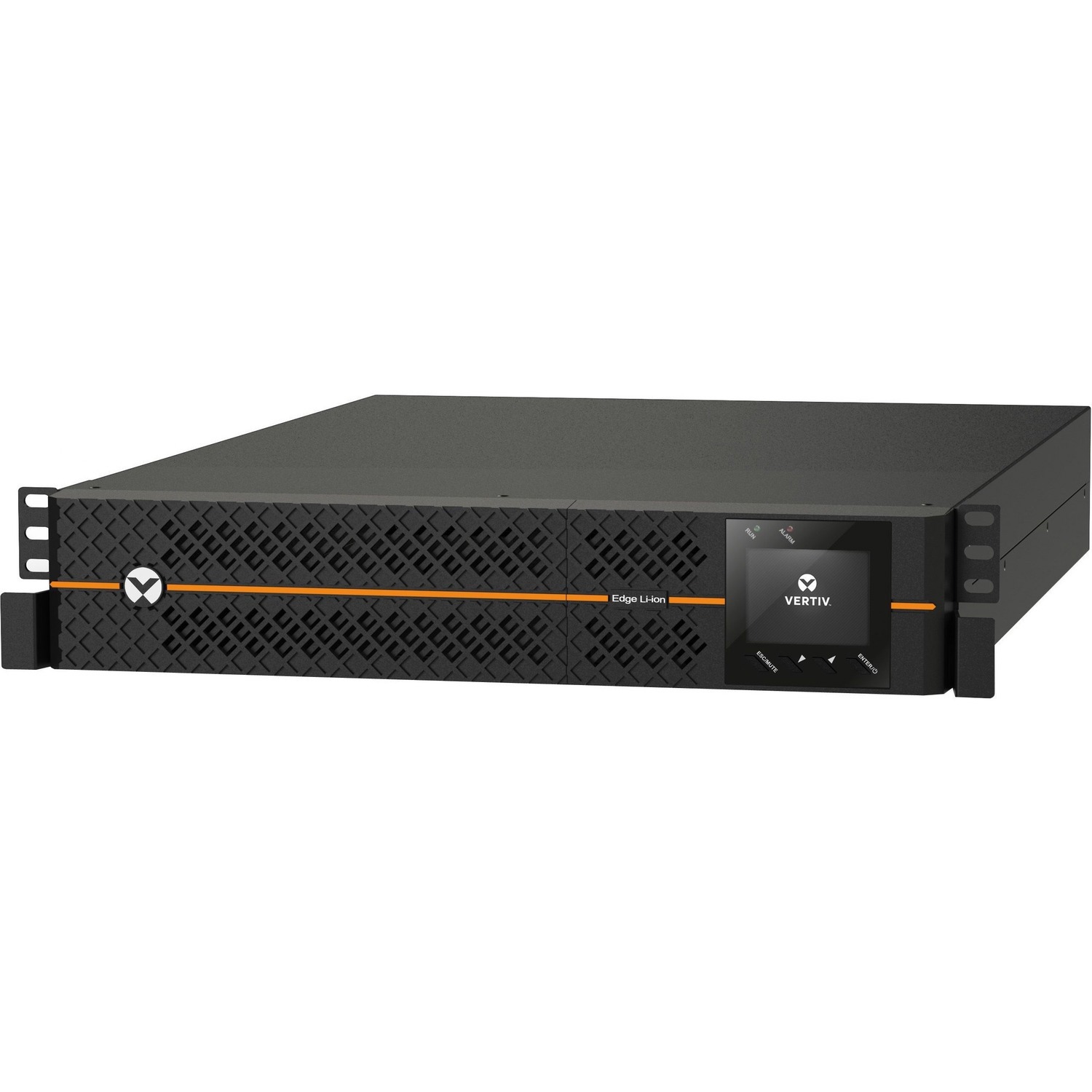

VERTIV Edge UPS 3000VA 230V Li-ion
- Part: 1495433
- Model: EDGELI-3000IRT2U
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- VERTIV
- Product Line
- Edge Lithium Ion
- Product Type
- Line-interactive UPS
The Vertiv Edge Lithium Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in server rooms, network closets and other edge and distributed IT applications. This 3 kVA UPS offers lower total cost of ownership, which can be up to 50% savings over lifetime. Lithium-ion batteries have greater power density, last about 2-3 times as long, recharge quicker and endure up to x10 more discharge cycles than traditional valve-regulated-lead-acid (VLRA) batteries. It includes automatic voltage regulation (AVR) technology to further extend battery life and provides plenty of runtime on battery during an outage for an orderly shutdown. This set-it-and-forget-it single phase UPS system comes with a five-year standard warranty for UPS and batteries, and together with the optional webcard for remote management, becomes ideal for remote or unmanned locations. This rack/tower UPS comes with a rotating LCD display to allow both rack and tower configurations.
- Technical Information
- AVR
- Yes
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C10
- Receptacle Detail
- 6 x IEC 60320 C13
- 1 x IEC 60320 C10
- Dataline Protection
- No
- Protection Type
- Sag
- Surge
- Spike
- Transient
- Under Voltage
- Over Voltage
- Input Breaker
- Bypass Switch
- No
- Emergency Power OFF
- Yes
- Transfer Time
- 6 ms
- EMI/RFI Noise Filter
- Yes
- Phase
- Single Phase
- Application/Usage
- Server Room
- Network Closet
- IT Equipment
- Business-critical System
- Power Description
- Load Capacity (VA)
- 3000 VA
- Load Capacity (Watt)
- 2700 W
- Extra Power for Future Expansion
- No
- Input Voltage Range
- 166 V AC - 278 V AC
- Input Current
- 16 A
- Output Voltage
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 65 Hz
- Power Consumption
- 31.60 W
- Waveform Type
- Sinusoidal
- Circuit Breaker
- Yes
- Management
- Alarm
- Yes
- Controls/Indicators
- Status Indicators
- LCD Display
- Diagnostic LEDs
- Interfaces/Ports
- Serial Port
- No
- VGA
- No
- Modem (RJ-11)
- No
- Network (RJ-45)
- No
- USB
- Yes
- USB (HID Compliant) Port
- Yes
- Total Number of Expansion Slots
- 1
- Battery Information
- DC System Voltage
- 72 V DC
- Number of Batteries
- 3
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 2500 mAh
- Backup/Run Time (Full Load)
- 10.50 Minute
- Backup/Run Time (Half Load)
- 22.60 Minute
- Backup/Run Time (With Optional Battery)
- No
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 2.40 Hour
- Hot Swappable
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 14°F (-10°C) - 113°F (45°C)
- Maximum Operating Elevation
- 9842.52 ft
- Sound Emission (A-Weighted)
- 45 dB(A)
- Thermal Dissipation
- 40.53 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3.4"
- Width
- 17.2"
- Depth
- 24.8"
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 53.57 lb
- Miscellaneous
- Additional Information
- Up to 3 times longer battery life
- Lowest TCO in the industry
- 5-year standard warranty on UPS and batteries
- Up to 10 minutes of runtime at full load (3kVA)
- Recharge to 90% in as little as 2 hours
- 45% Lighter
- 0.9 Power Factor
- Up to 10x more discharge cycles
- Sound Emission: <45dBA AVR mode, >70% load
- Country/Region: EMEA-APAC
- Battery Life: >5 years
- Audible Alarm: Yes
- Battery Management: Yes
- Transportation: ISTA 2A UPS UN38.3 (Lithium ion)
- Protection Type: Outages
- Energy Star
- No
- TAA Compliant
- No
