- General Information
- Manufacturer
- WyreStorm
- Manufacturer Website Address
- http://www.wyrestorm.com
- Brand Name
- WyreStorm
- Product Series
- IDB-200
- Packaged Quantity
- 1
- Product Type
- Power/Data Outlet

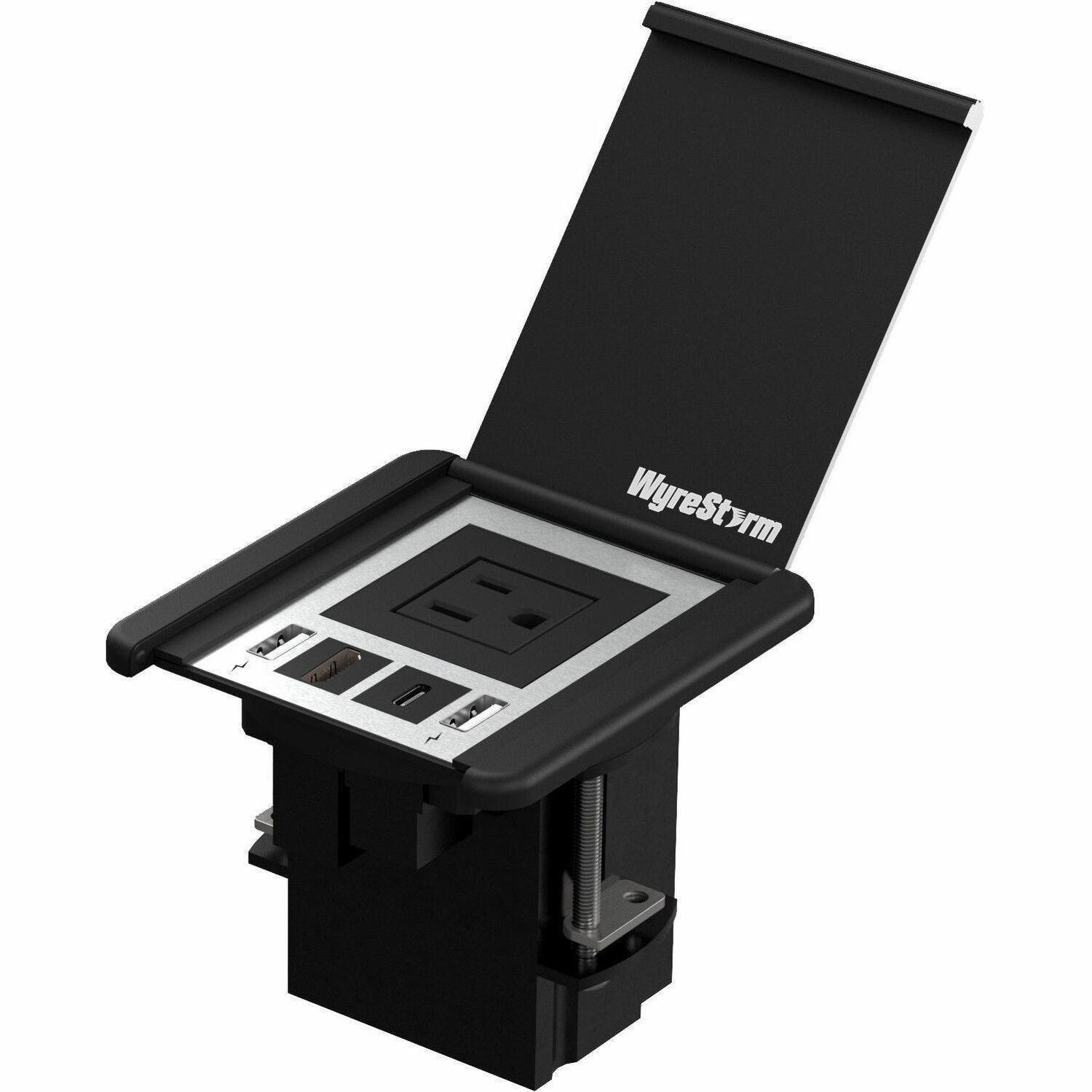

The IDB series in-desk connectivity products are simple to use solutions for corporate or education applications. Easy to install into a desk or table, the IDB-200 offers the essential connectivity for your meeting, lecture, or classroom. The IDB-200 features a flip-top lid to protect and help blend into the desk when not in use. The IDB-200-NA includes a North American Type B mains outlet.
HDMI & USB-C
Equipped with both HDMI and USB-C passthrough, easily connect a PC or mobile device and transmit up to 4K HDR video to a WyreStorm presentation switcher or direct to a display.
USB CHARGING
2x USB Type A ports provide 5v 2.4a per port for keeping your mobile devices charged while in a meeting.
COMPACT DESIGN
The compact design allows the IDB-200 to be installed into small tables or desks without being obtrusive. The flip-top cover allows the IDB-200 to be discrete when not in use.
WORLDWIDE SUPPORT
Two region-based models. The IDB-200-NA comes with a North American mains connection and the IDB-200-MS with a multi-standard mains to support multiple European countries.
- Technical Information
- Total Number of Receptacles
- 4
- Receptacle Type
- USB
- AC Power
- Receptacles Detail
- 2 x USB Type A
- 1 x USB Type C
- 1 x Mains Outlet (North American Type B)
- Features
- Protection Cap
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Number of USB Ports
- 3
- Power Description
- Voltage Rating
- 120 V AC
- 230 V AC
- Current Rating
- 16 A
- Physical Characteristics
- Form Factor
- Desk Mountable
- Power Cable Length
- 9.84 ft
- Above Surface Height
- 3.35"
- Above Surface Width
- 3.35"
- Below Surface Width
- 3.14"
- Below Surface Depth
- 3.15"
- Miscellaneous
- Certifications & Standards
- CE
- FCC
- RCM
- EAC
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
