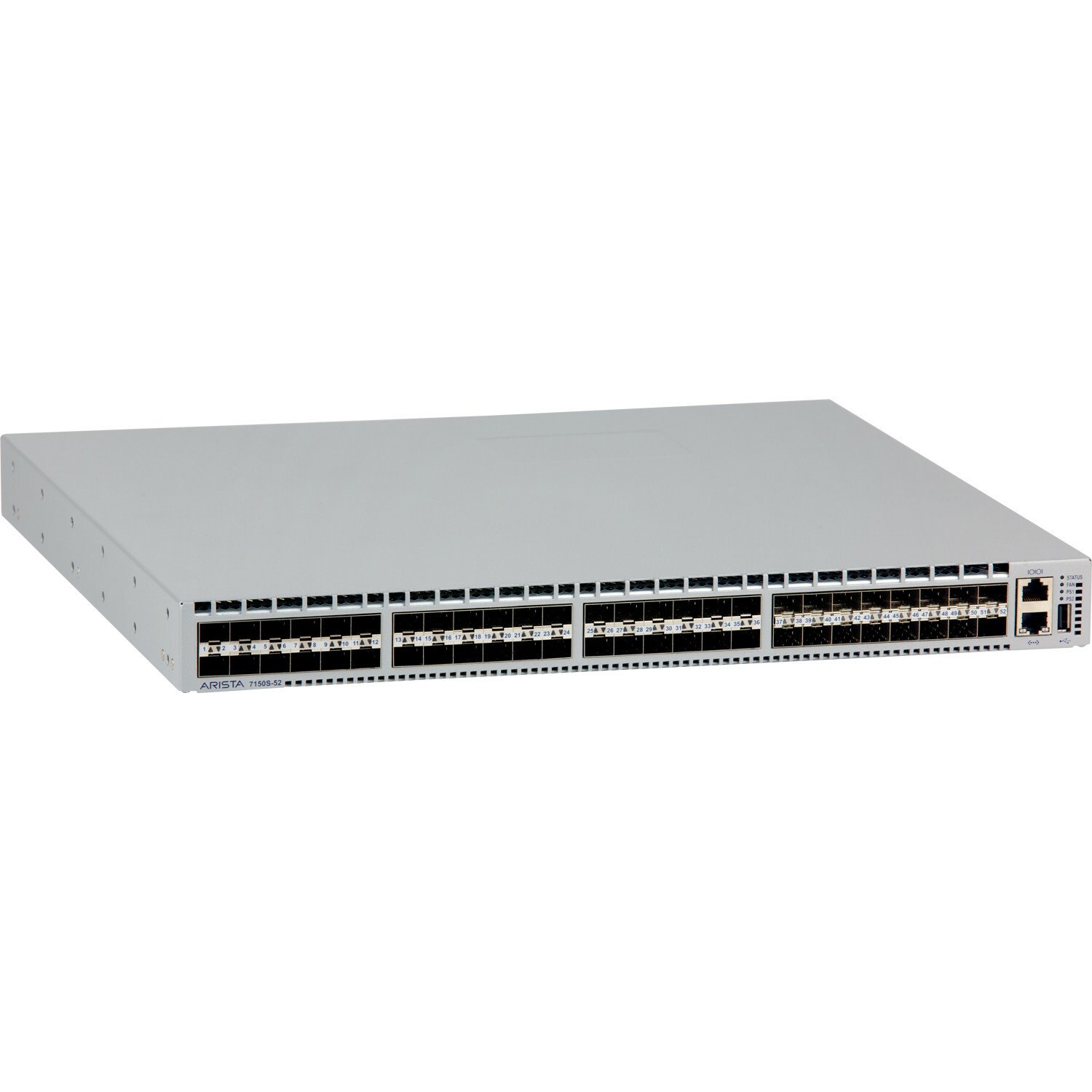

The Arista 7150S series represents the industry's leading ultra-low latency 1RU 1/10GbE layer 2/3/4 wire speed switch family, offering a unique combination of performance, advanced functionality and extensive onboard resources.
Designed to suit the requirements of demanding environments such as ultra-low latency financial ECNs, HPC clusters and cloud data centers, the 7150S' class-leading deterministic latency from 350ns is coupled with a set of advanced tools for monitoring and controlling mission critical environments.
- General Information
- Manufacturer
- Arista Networks, Inc
- Manufacturer Website Address
- http://www.aristanetworks.com
- Brand Name
- Arista Networks
- Product Series
- 7150S
- Product Type
- Layer 3 Switch
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Token Ring Port
- No
- LRE Port
- No
- Bypass
- No
- Modular
- No
- Management Port
- Yes
- USB
- Yes
- Stack Port
- No
- Port/Expansion Slot Details
- 52 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet
- I/O Expansions
- Total Number of Expansion Slots
- 52.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 52
- Network & Communication
- Layer Supported
- 4
- Management & Protocols
- Manageable
- Yes
- Management
- Web Based Management
- Command Line Interface (CLI)
- SNMP v2/3
- Telnet
- Syslog
- QoS
- VLAN
- DHCP
- MIB
- Memory
- Standard Memory
- 4 GB
- Memory Technology
- DRAM
- Flash Memory
- 2 GB
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 1.8"
- Width
- 19"
- Depth
- 16"
- Weight (Approximate)
- 20.90 lb
- Miscellaneous
- Package Contents
- 7150S-52 Layer 3 Switch
- 2 x AC Power Supply
- Certifications & Standards
- EMI:
- FCC Part 15 Class A
- ICES-003 Class A
- VCCI Class A
Safety:
- IEC/UL/CSA/EN 60950
- CE
- UL
- TUV Mark
IEEE Standards:
- 802.1D
- 802.1p
- 802.1Q
- 802.1w
- 802.1s
- 802.1AB
- 802.3ad
- 802.3ab
- 802.3z
- 802.3ae
- 802.3ba
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
