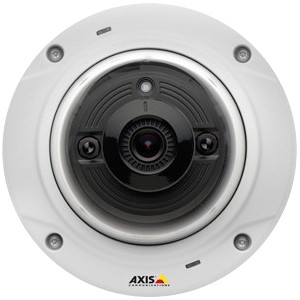

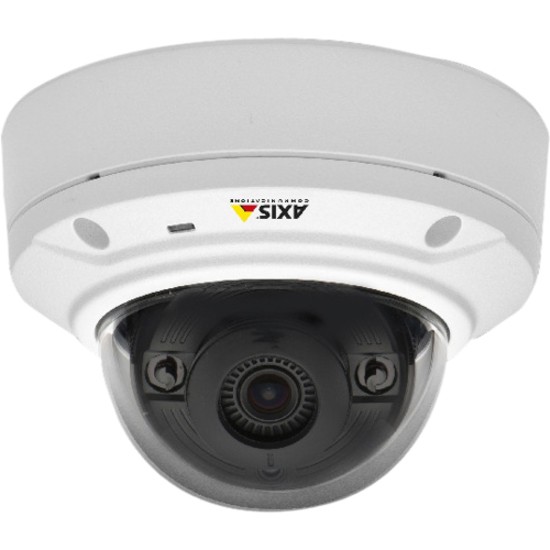

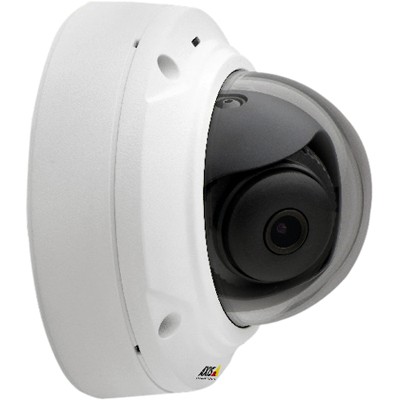

AXIS M3024-LVE and AXIS M3025-VE Network Cameras, which are part of the AXIS M30 Series, are affordably priced, vandal-resistant HDTV fixed mini domes for excellent video during day and night-time conditions in indoor or outdoor environments. They are ideal for installation inside or outside the entrance of a hotel, boutique, restaurant, office or school.
- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- M30
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 1 Year
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.7"
- Color Supported
- Color
- Monochrome
- Field of View
- 91°
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.264
- MJPEG
- MPEG-4
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 3.60 mm
- Lens Included
- Yes
- Lens Mount Type
- M12-mount
- Maximum Aperture
- f/2
- Exposure
- Shortest Shutter Speed
- 1/8000 Second
- Longest Shutter Speed
- 1/6 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- IPv4
- IPv6
- HTTP
- HTTPS
- SSL/TLS
- FTP
- SMB/CIFS
- SMTP
- Bonjour
- UPnP
- SNMP (MIB-2)
- DNS
- DynDNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SOCKS
- SNMP
- DiffServ (QoS)
- Storage
- Flash Memory Capacity
- 128 MB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 3.20 W
- Physical Characteristics
- Form Factor
- Dome
- Durability
- Vandal Resistant
- Water Resistant
- Color Family
- White
- Product Color
- White
- Height
- 3.7"
- Diameter
- 5.2"
- Weight (Approximate)
- 1.63 lb
- Miscellaneous
- Features
- Day/Night
- SD Card Local Storage
- Motion Detection
- Indoor/Outdoor
- Indoor/Outdoor
- Package Contents
- M3025-VE Network Camera
- Installation Guide
- Installation and Management Software CD
- Windows Decoder 1-User License
- Drill Hole Template
- Resitorx L-Key
- Terminal Block Connector
- Certifications & Standards
- EN 55022 Class B
- EN 61000-6-1
- EN61000-6-2
- EN55024
- FCC Part 15 Subpart B Class B
- ICES-003 ClassB
- VCCI Class B
- AS/NZS CISPR 22 ClassB
- KCC KN22 Class B
- KN24
- IEC/EN/UL 60950-22
- EN 50581
- IEC 60529 IP66
- NEMA 250 Type 4X
- IEC 62262 IK10
- IP66
- NEMA 4X-rated
- IK10
- NCS S 1002-B
- IEEE 802.3af
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- Security Features
- Password Protection
- IP Address Fltering
- HTTPS Encryption
- IEEE 802.1X Network Access Control
- Digest Authentication
- User Access Log
