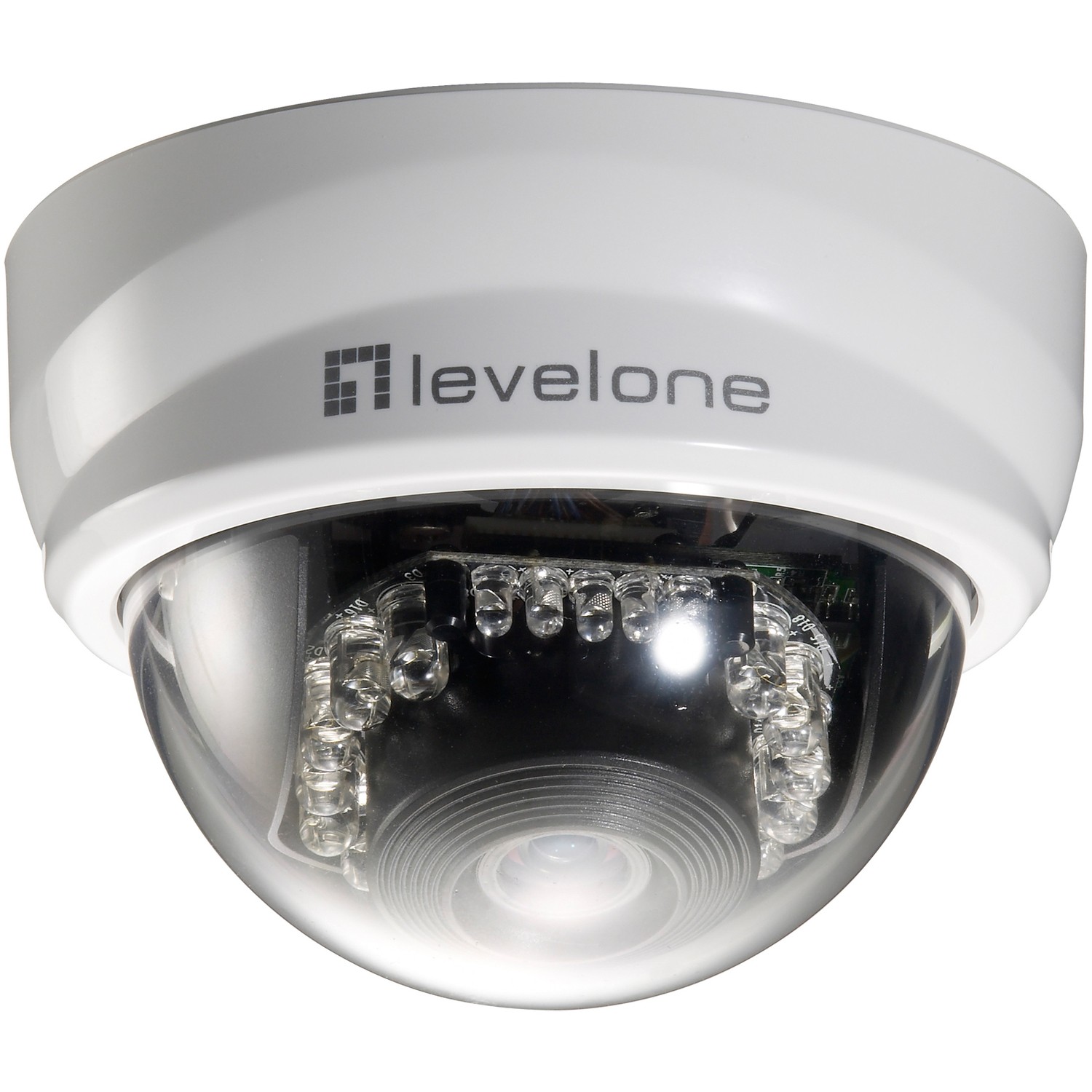

The LevelOne FCS-3101 is a palm-size and stylish design quality yet cost-effective surveillance solution for the home and office. It is designed for easy and flexible installation. Equipped with a 2-Megapixel sensor and built-in IR cut filter/IR illuminator LEDs, the camera provides high resolution quality and sharp sensitivity - ideal for security applications both day and night.
The FCS-3101 is equipped with many advanced features such as Level1DNS™ Service, alarm and sensor, a micro SD/SDHC card slot and USB interface for local storage, built-in microphone communications. Moreover, Support unique features for auto tracking function of moving objects, the system can send an E-mail alert or send captured images via FTP upload to a designated storage server. The FCS-3101 is indisputably the top choice for reliable and high performance surveillance.
- General Information
- Manufacturer
- CP Technologies
- Manufacturer Website Address
- http://www.cptechusa.com
- Brand Name
- LevelOne
- Product Type
- Network Camera
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.7"
- White Balance Modes
- Custom
- Color Supported
- Color
- Monochrome
- Field of View
- 62°
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.264
- MJPEG
- MPEG-4
- AVI
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Formats
- AMR
- AAC
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 4 mm
- Lens Included
- Yes
- Lens Mount Type
- Board Mount
- Maximum Aperture
- f/2
- Exposure
- Shortest Shutter Speed
- 1/1000000 Second
- Longest Shutter Speed
- 1/30 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- TCP/IP
- HTTP
- SMTP
- FTP
- DDNS
- UPnP
- Telnet
- NTP
- PPPoE
- DNS
- DHCP
- RTSP
- Samba
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 6 W
- Physical Characteristics
- Mount Type
- Ceiling Mount
- Desk Mount
- Form Factor
- Dome
- Height
- 3.6"
- Width
- 2.5"
- Depth
- 2.5"
- Weight (Approximate)
- 13.40 oz
- Miscellaneous
- Features
- Day/Night
- Dual Stream
- SD Card Local Storage
- Built-in Microphone
- Motion Detection
- Indoor/Outdoor
- Indoor/Outdoor
- Package Contents
- 2-Megapixel Day/Night PoE Mini Dome Network Camera
- Power Adapter
- Mounting Kit
- Screw Kit
- Quick Installation Guide
- Resource CD (User Manual, Utility, 64-CH Monitoring Software)
- System Requirements
- Supported OS: Microsoft Windows 7 / Vista / XP
- Suppported Browser: Internet Explorer 6.x or Above, Firefox, Chrome, Safari
- Cell phone: 3GPP Player
- Real Player: 10.5 or Above
- Quick Time 6.5 or Above
- Certifications & Standards
- CE
- FCC
- TAA
- Security Features
- Alarm and Notification: Alarm: Motion Detection; Notification: FTP, SMTP, Samba
- Access Control: Multi-level user access with password protection
- IP address filtering
- HTTPS encrypted data transmission
- Platform Supported
- PC
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
