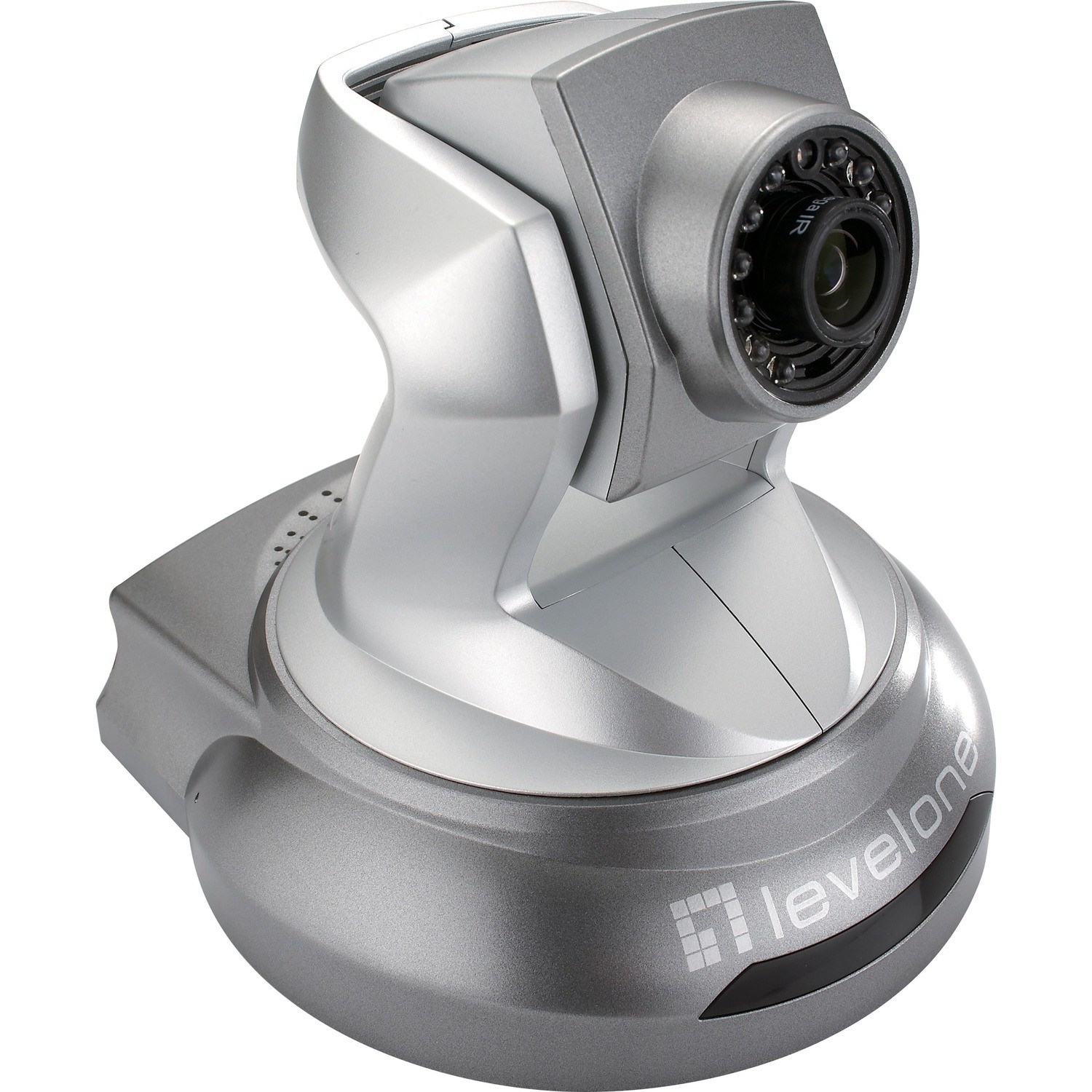

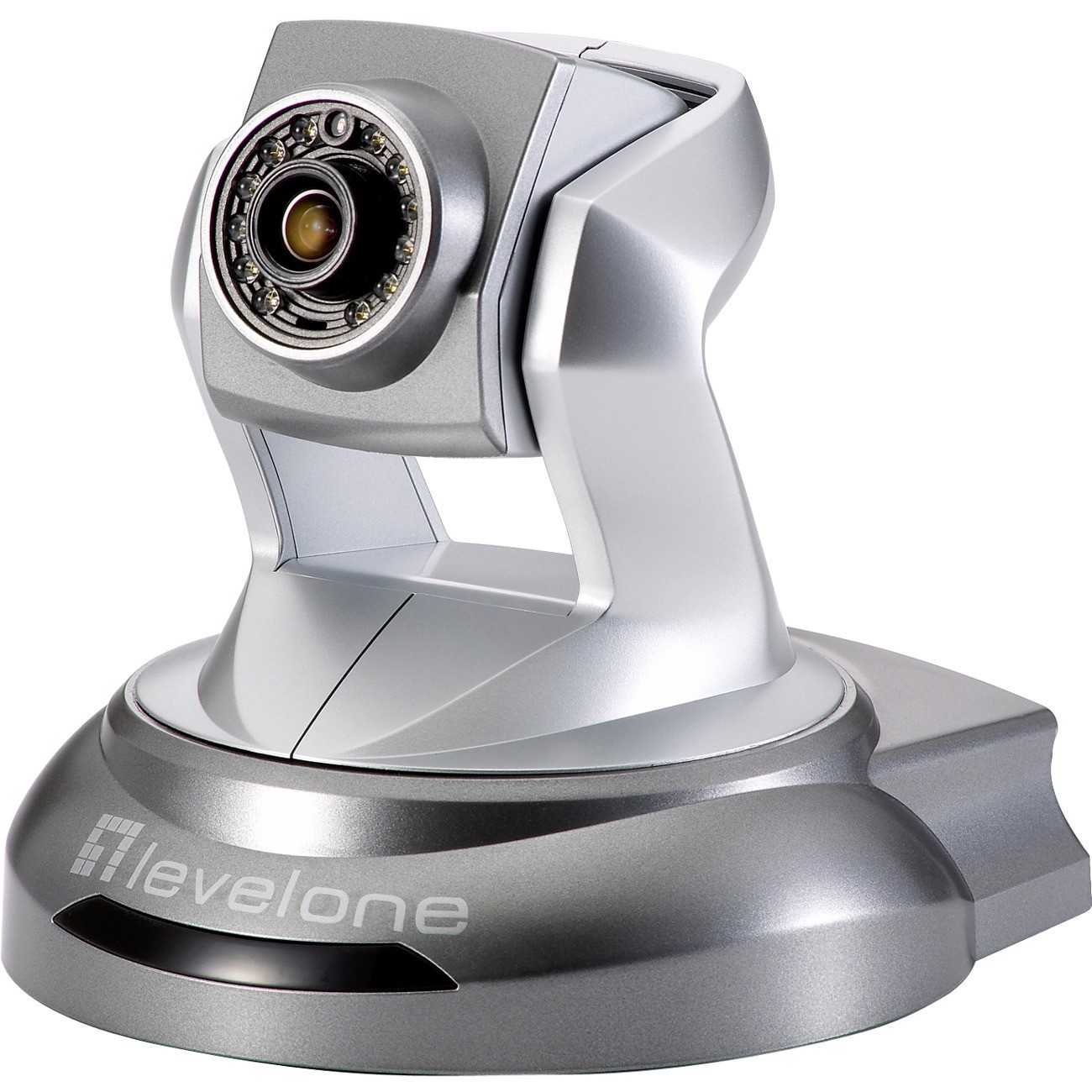

The LevelOne FCS-6020 is a quality yet cost-effective surveillance solution for the home and office. It is designed for easy and flexible installation, provides a choice of either a PoE , and the motorized Pan and Tilt provides a viewing angle of ±355° pan and ±135° tilt. Equipped with a 2-Megapixel sensor and built-in IR cut filter/IR illuminator LEDs, the camera provides high resolution quality and sharp sensitivity - ideal for security applications both day and night.
The FCS-6020 is equipped with many advanced features such as Level1DNS™ Service, DI/DO for external alarm and sensor, a micro SD/SDHC card slot and USB interface for local storage, built-in microphone and external speaker for 2-way audio communications. Moreover, users can also set up 16 motion-detection regions with the camera, each with adjustable size and sensitivity. When motion is detected at the specified regions, the system can send an E-mail alert or send captured images via FTP upload to a designated storage server. The FCS-6020 is indisputably the top choice for reliable and high performance surveillance.
- General Information
- Manufacturer
- CP Technologies
- Manufacturer Website Address
- http://www.cptechusa.com
- Brand Name
- LevelOne
- Product Type
- Network Camera
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.7"
- White Balance Modes
- AWB
- Color Supported
- Color
- Monochrome
- Field of View
- 62°
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- MJPEG
- MPEG-4
- H.264
- AVI
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Formats
- AMR
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 4 mm
- Lens Included
- Yes
- Lens Mount Type
- Board Mount
- Maximum Aperture
- f/2
- Exposure
- Shortest Shutter Speed
- 1/10000 Second
- Longest Shutter Speed
- 1/1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- TCP/IP
- HTTP
- SMTP
- FTP
- DDNS
- UPnP
- Telnet
- NTP
- PPPoE
- DNS
- DHCP
- RTSP
- Samba

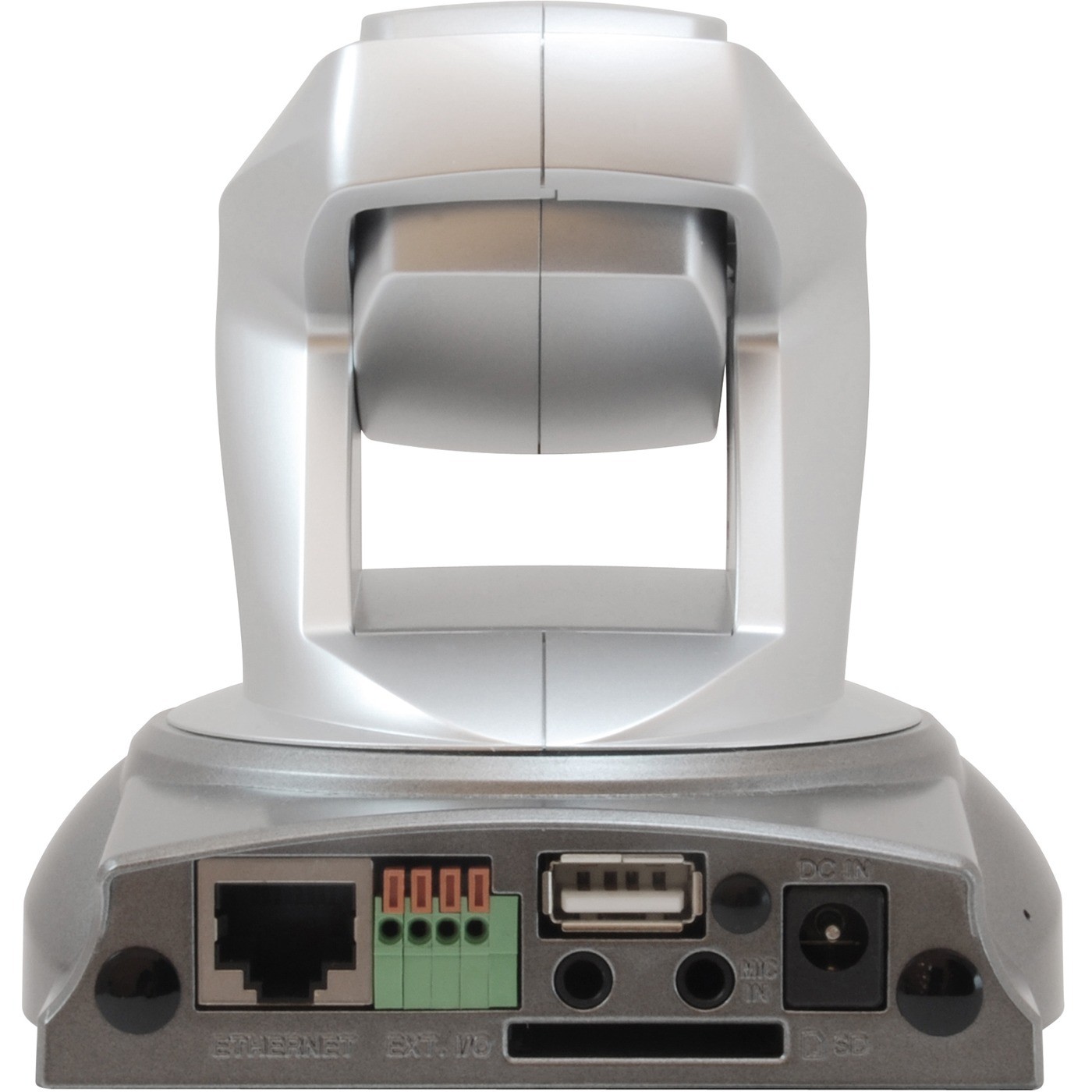

- Interfaces/Ports
- USB
- Yes
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Power Description
- Maximum Power Consumption
- 8 W
- Physical Characteristics
- Mount Type
- Ceiling Mount
- Height
- 4.1"
- Width
- 4.1"
- Depth
- 4.3"
- Weight (Approximate)
- 13.58 oz
- Miscellaneous
- Features
- Day/Night
- Built-in Microphone
- SD Card Local Storage
- Motion Detection
- Package Contents
- PT Network Camera, Day & Night, PoE 802.3af, IR LEDs, 2-Megapixel
- Bracket
- Power Adapter
- RJ45 Ethernet Cable
- Stand Kit
- Quick Installation Guide
- Resource CD (User Manual, Utility, 64-CH Monitoring Software)
- System Requirements
- Operation Systems:
- Microsoft Windows 7/Vista/XP
- Internet Explorer 6.x or above
- Firefox
- Chrome
- Safari
- Cell phone: 3GPP player
- Real Player: 10.5 or above
- Quick Time 6.5 or above
- Certifications & Standards
- FCC
- CE
- Security Features
- Access Control: Multi-level user Access with Password Protection
- IP Address Filtering
- HTTPS Encrypted Data Transmission
- Country of Origin
- Taiwan
